Driver for SSD1306, SSD1315, and SSH1106 OLED displays. More...

#include <stdint.h>
#include <Arduino.h>
#include <util/delay.h>

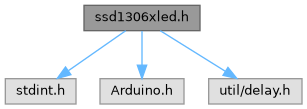

Include dependency graph for ssd1306xled.h:

This graph shows which files directly or indirectly include this file:

Data Structures
class	SSD1306Device
	Driver for SSD1306-family OLED displays over bit-banged I2C. More...

Macros
#define	_SSD1306XLED_TINY_INIT_SUPPORTED_

#define	_SSD1306XLED_INIT_VERTICAL_SUPPORTED_

#define	SSD1306_SCL PB2

#define	SSD1306_SDA PB0

#define	SSD1306_SA 0X3C

#define	DDR_USI DDRB

#define	PORT_USI PORTB

#define	PIN_USI PINB

#define	PORT_USI_SDA PORTB0

#define	PORT_USI_SCL PORTB2

#define	PIN_USI_SDA PINB0

#define	PIN_USI_SCL PINB2

#define	DDR_USI_CL DDR_USI

#define	PORT_USI_CL PORT_USI

#define	PIN_USI_CL PIN_USI

#define	TWI_FAST_MODE

#define	DELAY_T2TWI (_delay_us(2))

#define	DELAY_T4TWI (_delay_us(1))

#define	TWI_NACK_BIT 0

#define	SSD1306_COMMAND 0x00

#define	SSD1306_DATA 0x40

#define	SSD1306_NO_FONT_6X8

#define	SSD1306_NO_FONT_8X16

#define	SSD1306_NO_DRAW_BMP

#define	SSD1306_QUICK_BEGIN

Variables
const unsigned char	USISR_8bit = 1<<USISIF \| 1<<USIOIF \| 1<<USIPF \| 1<<USIDC \| 0x0<<USICNT0

const unsigned char	USISR_1bit = 1<<USISIF \| 1<<USIOIF \| 1<<USIPF \| 1<<USIDC \| 0xE<<USICNT0

SSD1306Device	SSD1306
	Global driver instance.

Detailed Description

Driver for SSD1306, SSD1315, and SSH1106 OLED displays.

Bit-bangs I2C via the ATtiny85 USI peripheral. No Wire library needed – saves about 1 KB of flash compared to TinyWireM. Works on any AVR with USI by redefining the pin macros.

Originally by Neven Boyanov (Tinusaur). I2C rewrite based on TinyI2C by David Johnson-Davies. Maintained by Tejashwi Kalp Taru.

Version: 1.0.0

See also: https://github.com/tejashwikalptaru/ssd1306xled

Macro Definition Documentation

◆ _SSD1306XLED_INIT_VERTICAL_SUPPORTED_

#define _SSD1306XLED_INIT_VERTICAL_SUPPORTED_

◆ _SSD1306XLED_TINY_INIT_SUPPORTED_

#define _SSD1306XLED_TINY_INIT_SUPPORTED_

◆ DDR_USI

#define DDR_USI DDRB

◆ DDR_USI_CL

#define DDR_USI_CL DDR_USI

◆ DELAY_T2TWI

#define DELAY_T2TWI (_delay_us(2))

◆ DELAY_T4TWI

#define DELAY_T4TWI (_delay_us(1))

◆ PIN_USI

#define PIN_USI PINB

◆ PIN_USI_CL

#define PIN_USI_CL PIN_USI

◆ PIN_USI_SCL

#define PIN_USI_SCL PINB2

◆ PIN_USI_SDA

#define PIN_USI_SDA PINB0

◆ PORT_USI

#define PORT_USI PORTB

◆ PORT_USI_CL

#define PORT_USI_CL PORT_USI

◆ PORT_USI_SCL

#define PORT_USI_SCL PORTB2

◆ PORT_USI_SDA

#define PORT_USI_SDA PORTB0

◆ SSD1306_COMMAND

#define SSD1306_COMMAND 0x00

I2C control byte: next bytes are commands.

◆ SSD1306_DATA

#define SSD1306_DATA 0x40

I2C control byte: next bytes are display data.

◆ TWI_FAST_MODE

#define TWI_FAST_MODE

◆ TWI_NACK_BIT

#define TWI_NACK_BIT 0

Variable Documentation

◆ SSD1306

SSD1306Device SSD1306

extern

Global driver instance.

Use this to call all display functions. Do not create additional instances.

SSD1306.ssd1306_init();

SSD1306.ssd1306_string_font6x8("hello");

SSD1306Device::ssd1306_init

void ssd1306_init(void)

Initialize the display and clear the screen.

Definition ssd1306xled.cpp:241
