Examples walkthrough

OLED_demo.ino

The demo sketch in examples/OLED_demo/ runs through the main library features. Each section is labeled on-screen so you can tell what's happening.

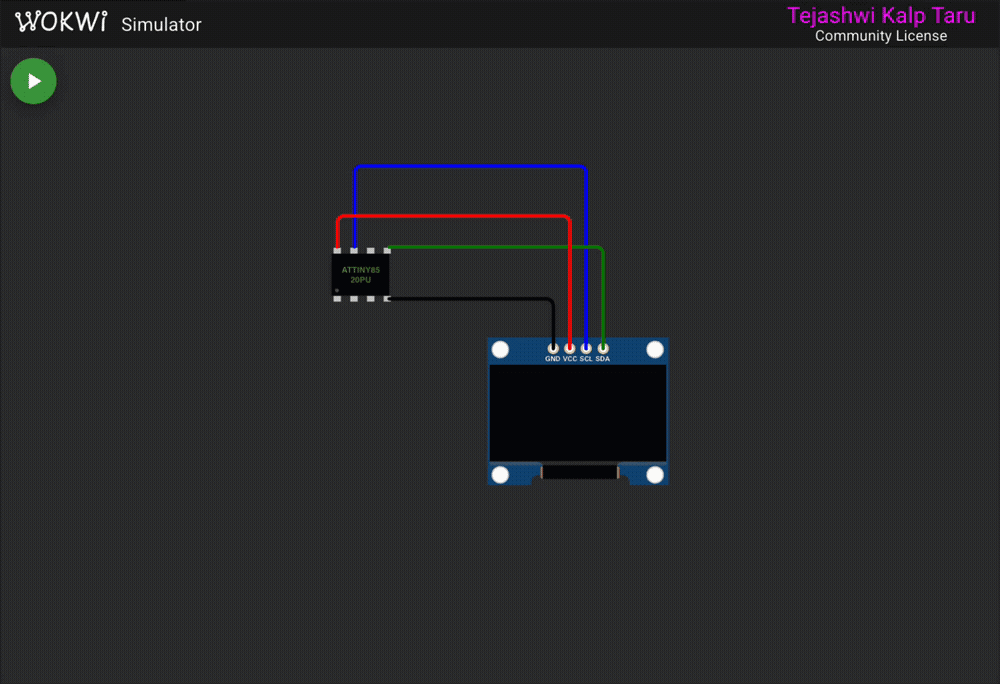

OLED_demo running in the Wokwi simulator

Setup

void setup() {
    _delay_ms(40);
    SSD1306.ssd1306_init();
}

Waits 40 ms for the display to power up, then sends the initialization sequence and clears the screen.

Fill patterns

for (uint8_t i = 0; i < 8; i++) {
    SSD1306.ssd1306_fillscreen(i);
    _delay_ms(200);
}

Each byte in the display controls 8 vertical pixels (bit 0 = top, bit 7 = bottom). Filling with 0x00 leaves the screen blank. Filling with 0x01 lights the top pixel of every 8-pixel page strip, producing a thin horizontal line every 8 rows. The loop runs through patterns 0-7, so you see a single line stepping down one pixel at a time within each page.

Text rendering

SSD1306.ssd1306_setpos(0, 0);
SSD1306.ssd1306_string_font6x8("Text demo");
SSD1306.ssd1306_setpos(0, 3);
SSD1306.ssd1306_string_font6x8("SSD1306XLED");

Prints a label at the top and the library name in the middle of the screen using the 6x8 font. Each character is 6 pixels wide, so 11 characters take 66 of the 128 columns.

Image demo

An "Image demo" label appears briefly, then two full-screen bitmaps are drawn one after the other.

SSD1306.ssd1306_fillscreen(0);
SSD1306.ssd1306_draw_bmp(0, 0, 128, 8, logo);

Each bitmap is a PROGMEM array of 1024 bytes (128 columns x 8 pages). The coordinates (0, 0, 128, 8) cover all 128 columns across all 8 pages. The first bitmap comes from image.h, the second from image_two.h.

Compositing demo

Two 8x8 sprites are defined: a hollow rectangle and a solid block.

static const uint8_t spriteA[] PROGMEM = {
    0xFF, 0x81, 0x81, 0x81, 0x81, 0x81, 0x81, 0xFF  // hollow rectangle
};
static const uint8_t spriteB[] PROGMEM = {
    0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF  // filled rectangle
};

Sprite A sits at Y=20 (pages 2-3) and sprite B at Y=28 (pages 3-4). Both touch page 3.

Without compositing – the demo first draws both sprites with plain ssd1306_draw_bmp_px(). The second draw overwrites the first on page 3, so one sprite's contribution to that page disappears. You can see the broken result on-screen for a few seconds.

With compositing – the demo then redraws using the compositing functions. Non-shared pages are drawn normally. The shared page is built in a buffer:

uint8_t buf[8];
memset(buf, 0, 8);
SSD1306.ssd1306_compose_bmp_px(buf, 20, 8, 20, 20, 8, 1, spriteA, 3);
SSD1306.ssd1306_compose_bmp_px(buf, 20, 8, 20, 28, 8, 1, spriteB, 3);
SSD1306.ssd1306_send_buf(20, 3, buf, 8);

Both sprites' bits for page 3 are OR'd into the buffer, then sent in one write. Both sprites appear correctly this time.

sprite_overlap_fix.ino

This example reproduces the bug reported in issue #19 – sprite flicker when two rows of sprites sit close together on the Y axis – and shows how v1.0.0's compositing and clipping fix it.

sprite_overlap_fix running in the Wokwi simulator

You can run it in the Wokwi simulator without any hardware. See the Wokwi simulation page for setup instructions.

The bug

The SSD1306 splits its 64-pixel height into eight 8-pixel pages. Each byte you write controls one column of a page. I2C is write-only, so there is no way to read existing pixels back before writing new ones. If two sprites touch the same page, the second write erases the first.

In this example, two rows of 16x8 invader sprites sit at Y=19 and Y=28. Y=19 spans pages 2-3 and Y=28 spans pages 3-4. Both touch page 3, so the second row's write to page 3 wipes out the first row's pixels there.

for (uint8_t i = 0; i < 3; i++) {
    SSD1306.ssd1306_draw_bmp_px(10 + i * 40, 19, 16, 1, invader);  // row 1
    SSD1306.ssd1306_draw_bmp_px(10 + i * 40, 28, 16, 1, invader);  // row 2
}

The screen shows "BUG: flicker" and you can see the bottom edge of the top row is missing – that is the data the second row overwrote on page 3.

The fix: compositing

The fix is a three-step process for each column group where sprites share a page:

1. Draw both sprites normally. This writes the non-shared pages correctly (page 2 for row 1's top half, page 4 for row 2's bottom half).
2. Composite both sprites into a small buffer for the shared page. Each call ORs the sprite's bits into the buffer, so neither erases the other.
3. Send the buffer to the display once.

uint8_t x = 10 + i * 40;

// Step 1: normal draws handle non-shared pages
SSD1306.ssd1306_draw_bmp_px(x, 19, 16, 1, invader);
SSD1306.ssd1306_draw_bmp_px(x, 28, 16, 1, invader);

// Step 2: composite shared page 3 into a buffer
uint8_t buf[16];
memset(buf, 0, 16);
SSD1306.ssd1306_compose_bmp_px(buf, x, 16, x, 19, 16, 1, invader, 3);
SSD1306.ssd1306_compose_bmp_px(buf, x, 16, x, 28, 16, 1, invader, 3);

// Step 3: single write, both sprites preserved
SSD1306.ssd1306_send_buf(x, 3, buf, 16);

The buffer only needs to be as wide as the widest column span that overlaps. Here both sprites are 16 pixels wide at the same X, so 16 bytes. See Compositing – flicker-free overlapping sprites for more detail on the API.

The fix: clipping

The same issue report mentioned a sprite jump when entering from off-screen. If X is negative, ssd1306_draw_bmp_px() wraps around because X is unsigned. The _clipped variants accept signed X and clip columns that fall outside 0-127.

for (int16_t x = -16; x <= 112; x += 2) {
    SSD1306.ssd1306_clear_area_px_clipped(x - 2, 3, 16, 1);
    SSD1306.ssd1306_draw_bmp_px_clipped(x, 3, 16, 1, saucer);
    _delay_ms(30);
}

The saucer slides in from the left edge, partially visible at first, then fully on-screen. No jump, no wrap-around. See Clipping – signed X coordinates for the API details.

invaders_fix.ino

A user building a Space Invaders game on the ATtiny85 ran into two problems and reported them in issue #19.

invaders_fix running in the Wokwi simulator

This example pulls their actual sprite data and recreates both bugs on screen, then fixes them. It walks through four scenes that loop:

1. The overlap bug (broken)
2. The compositing fix (working)
3. The clipping fix for off-screen sprites
4. A shooting demo with explosion animation

The sprites in sprites.h come straight from the reporter's code – two invader types with animation frames, a saucer, a turret, and an explosion.

The overlap bug

Five type-1 invaders at Y=19 and five type-2 invaders at Y=28. Both rows touch page 3 (rows 24-31). When the second row draws to page 3, it overwrites the first row's pixels there. The bottom edge of the top row disappears.

The compositing fix

Draw both rows normally first – that gets pages 2 and 4 right. Then fix page 3 by compositing both rows into a buffer and sending it once:

SSD1306.ssd1306_draw_bmp_px(x, 19, 16, 1, invaderA);
SSD1306.ssd1306_draw_bmp_px(x, 28, 16, 1, invader2A);

uint8_t buf[16];
memset(buf, 0, 16);
SSD1306.ssd1306_compose_bmp_px(buf, x, 16, x, 19, 16, 1, invaderA,  3);
SSD1306.ssd1306_compose_bmp_px(buf, x, 16, x, 28, 16, 1, invader2A, 3);
SSD1306.ssd1306_send_buf(x, 3, buf, 16);

Both rows show up cleanly. Page 3 now has the OR of both sprites' bits instead of just the last one written.

The clipping fix

The reporter's saucer started at X=-16 to slide in from the left edge. ssd1306_draw_bmp_px takes an unsigned X, so negative values wrap to large positive ones and the sprite jumps across the screen. The _clipped variant accepts signed X and clips columns outside 0-127:

for (int16_t x = -16; x <= 112; x++) {
    SSD1306.ssd1306_clear_area_px_clipped(x - 1, 8, 16, 1);
    SSD1306.ssd1306_draw_bmp_px_clipped(x, 8, 16, 1, saucer);
    _delay_ms(20);
}

The saucer enters gradually from off-screen. No jump.

Shooting with explosions

The last scene ties it all together. A turret at the bottom of the screen shoots three invaders in the second row, one at a time. A bullet sprite travels upward from the turret to the target. On hit, the invader is replaced with an explosion sprite that flashes three times.

The tricky part: the explosion happens on row 2 (Y=28), which shares page 3 with row 1 (Y=19). Without compositing, the explosion would erase row 1's pixels on that page. The demo recomposites page 3 on every explosion frame so the top row stays intact while the blast animates below it:

// Draw explosion on row 2
SSD1306.ssd1306_draw_bmp_px(inv_x, ROW2_Y, 16, 1, invBlast);

// Recomposite page 3: row 1 invader + explosion, OR'd together
uint8_t buf[16];
memset(buf, 0, 16);
SSD1306.ssd1306_compose_bmp_px(buf, inv_x, 16, inv_x, ROW1_Y, 16, 1, invaderA,  3);
SSD1306.ssd1306_compose_bmp_px(buf, inv_x, 16, inv_x, ROW2_Y, 16, 1, invBlast,  3);
SSD1306.ssd1306_send_buf(inv_x, 3, buf, 16);

After the explosion finishes, page 3 is recomposited one more time with just row 1, leaving the destroyed invader's slot empty.

Run it in the simulator with make build EXAMPLE=invaders_fix. See the Wokwi simulation page for setup.

Games

Three ATtiny85 games by Daniel Champagne ship as examples. They were originally written for ssd1306xled v0.0.1 and use only the low-level byte transmission functions (ssd1306_send_command, ssd1306_send_byte, ssd1306_send_data_start/stop), so they work on v1.0.0 without changes.

All three need a potentiometer on A3 for movement and a button on PB1 for action. A piezo buzzer on PB4 handles sound. In the Wokwi simulator they run without controls and show their title screens or idle behavior.

Source code and GPLv3 license: Daniel Champagne's Arduino collection

tiny_gilbert

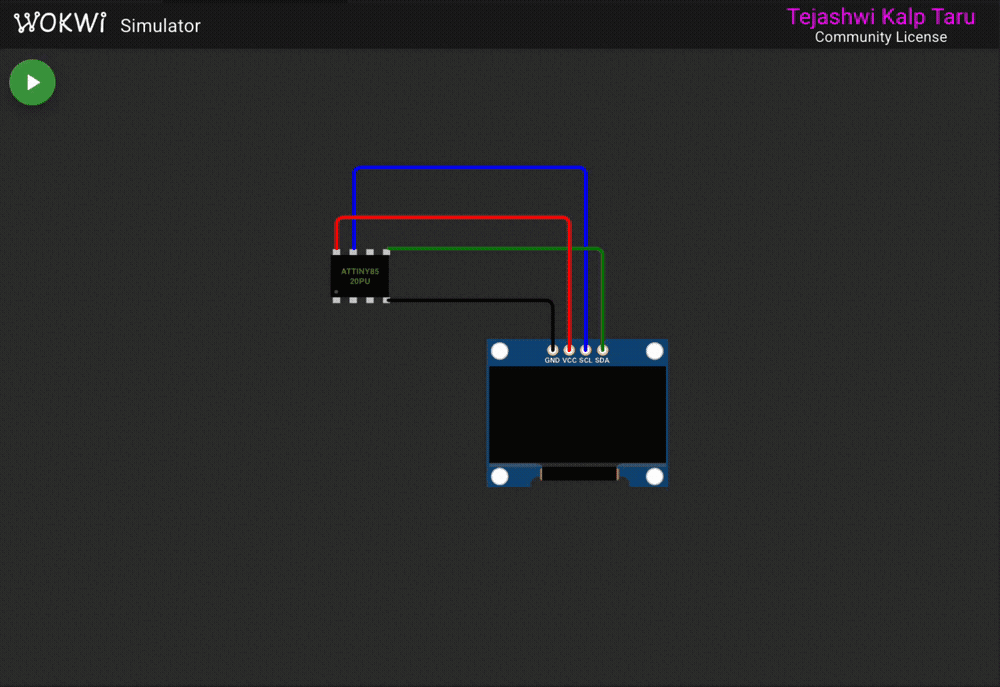

Tiny Gilbert running in the Wokwi simulator

A platformer with 10 levels. Collect keys to open the exit door, avoid spikes, and jump between platforms. The player has a 3-frame walking animation and the camera scrolls to follow movement. Uses 98.5% of the ATtiny85's 8 KB flash and 73% of its 512 bytes of RAM.

make build EXAMPLE=tiny_gilbert

tiny_space_invaders

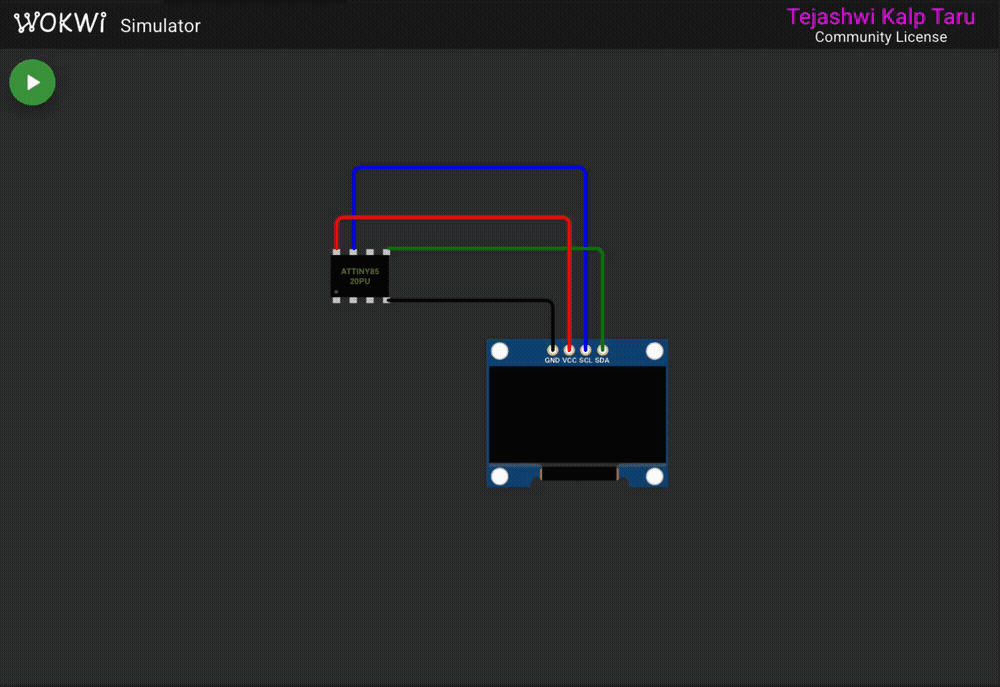

Tiny Space Invaders running in the Wokwi simulator

A Space Invaders clone with 9 difficulty levels, 6 destructible shields, and a bonus UFO. Four rows of six aliens march across the screen, descend, and fire back. Shooting the UFO earns an extra life. Uses 98.1% flash.

make build EXAMPLE=tiny_space_invaders

tiny_bomber

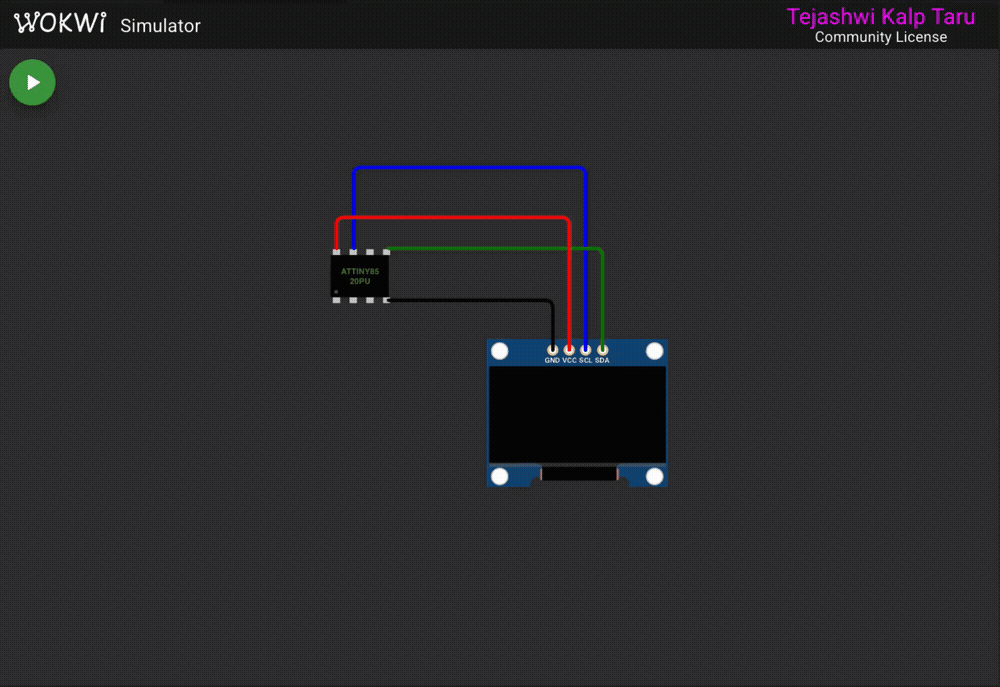

Tiny Bomber running in the Wokwi simulator

A Bomberman-style game with 3 levels. Drop bombs to destroy blocks and four enemies that wander the grid. Bombs explode after a timer, and the blast can chain through destructible terrain. Uses 96.5% flash.

make build EXAMPLE=tiny_bomber

fur_elise.ino

Plays the opening of Beethoven's Fur Elise on a piezo buzzer connected to PB4 while showing the current note on the SSD1306 display. The melody is stored in PROGMEM as note-duration pairs.

The screen shows three things at once:

• The note name in the center (E5, D#5, B4, etc.)
• A horizontal bar whose width tracks the pitch – higher notes stretch further right
• A scrolling history of the last 10 notes along the bottom

Sound is generated by toggling PB4 at the target frequency, the same approach the game examples use. The buzzer in the Wokwi diagram picks it up directly.

make build EXAMPLE=fur_elise

Uses 30% flash and 9% RAM – plenty of room to add more songs.

Creating your own bitmaps

Bitmap data for the SSD1306 is organized page-by-page, left to right, top to bottom. Each byte represents 8 vertical pixels in one column (LSB = top).

You can create bitmap data using tools like:

• image2cpp – online converter, outputs C arrays
• LCD Assistant – Windows tool
• GIMP or Photoshop – export as monochrome BMP, then convert

Make sure to select "vertical" byte orientation with LSB at top, and store the result as a PROGMEM array.
