ssd1306xled

A lightweight driver for SSD1306, SSD1315, and SSH1106 OLED displays. Built for ATtiny85 and other memory-constrained AVR microcontrollers. Uses a custom I2C bit-banging implementation (based on TinyI2C) instead of the Wire library, saving about 1 KB of flash.

Originally written by Neven Boyanov and the Tinusaur team.

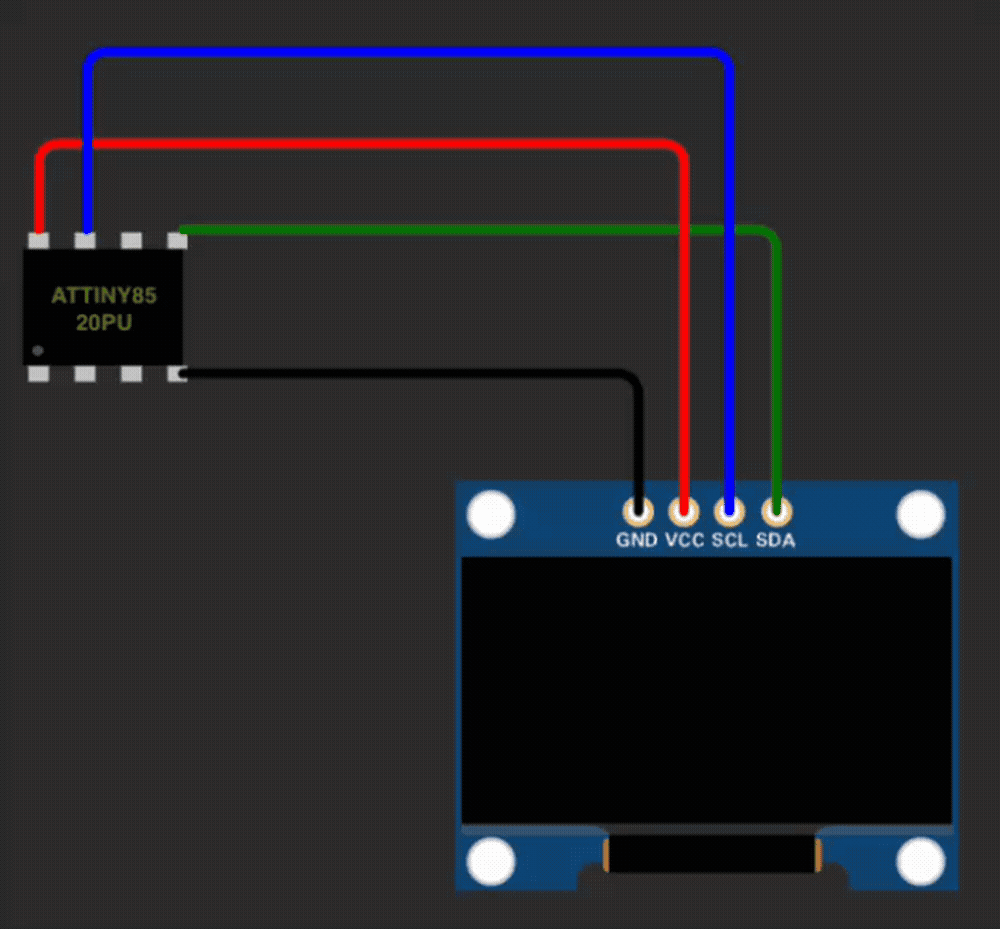

demo

Wiring (ATtiny85)

OLED ATtiny85
VCC VCC
GND GND
SCL PB2
SDA PB0

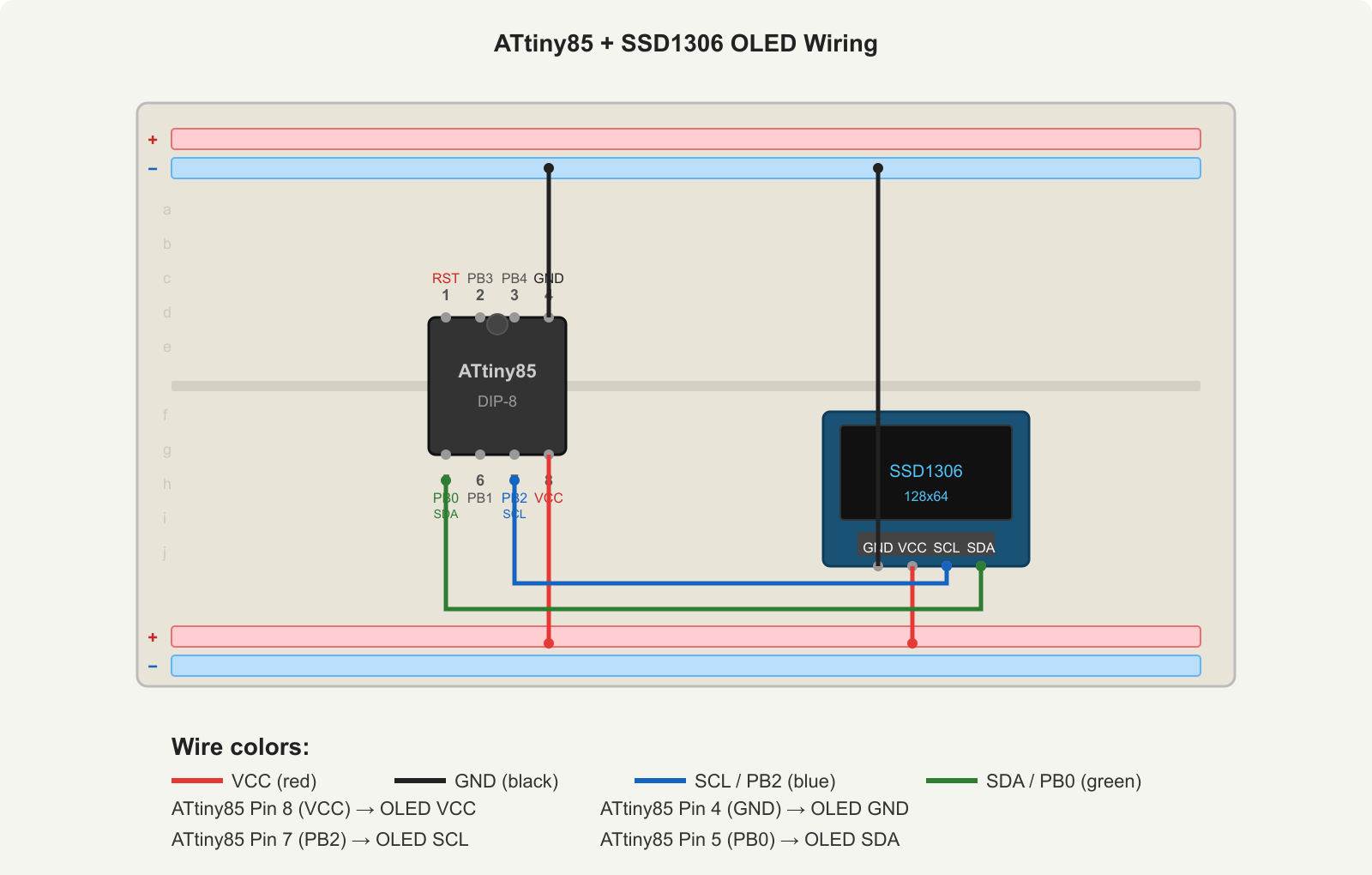

breadboard connection

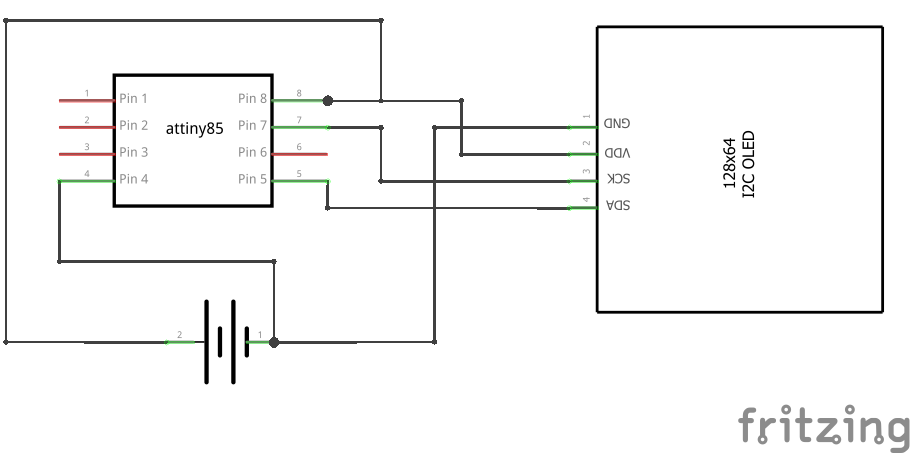

schematic

Installation

PlatformIO

pio lib install "ssd1306xled"

Or add it to your platformio.ini:

lib_deps = ssd1306xled

You can also browse the library on the PlatformIO registry.

Arduino IDE

Open Tools > Manage Libraries, search for ssd1306xled, and click Install.

Manual

Download the latest .zip from the releases page.

For Arduino IDE:

Open Sketch > Include Library > Add .ZIP Library and select the downloaded file. Arduino will copy it into your libraries folder automatically.

If you prefer doing it by hand, unzip and move the folder to your Arduino libraries directory (usually ~/Arduino/libraries/ on Linux/macOS or Documents\Arduino\libraries\ on Windows). Restart the IDE afterward.

For PlatformIO:

Unzip the release into your project's lib/ directory so the layout looks like this:

your_project/
lib/
ssd1306xled/
ssd1306xled.h
ssd1306xled.cpp
font6x8.h
font8x16.h
library.json

PlatformIO picks up anything inside lib/ automatically – no extra configuration needed.

Quick start

#include <Arduino.h>
#include <ssd1306xled.h>
void setup() {
_delay_ms(40);
SSD1306.ssd1306_init();
}
void loop() {
SSD1306.ssd1306_fillscreen(0);
SSD1306.ssd1306_setpos(0, 1);
SSD1306.ssd1306_string_font6x8("Hello world!");
}
SSD1306Device::ssd1306_init
void ssd1306_init(void)
Initialize the display and clear the screen.
Definition ssd1306xled.cpp:241
SSD1306Device::ssd1306_setpos
void ssd1306_setpos(uint8_t x, uint8_t y)
Move the write cursor to a given position.
Definition ssd1306xled.cpp:307
SSD1306Device::ssd1306_fillscreen
void ssd1306_fillscreen(uint8_t fill)
Fill the entire screen with a byte pattern.
Definition ssd1306xled.cpp:283
ssd1306xled.h
Driver for SSD1306, SSD1315, and SSH1106 OLED displays.
SSD1306
SSD1306Device SSD1306
Global driver instance.
Definition ssd1306xled.cpp:607

This clears the screen and prints "Hello world!" on the second row using the 6x8 font.

Try it online

You can run these demos in your browser without any hardware using the Wokwi simulator:

  • SSD1306xLED demo – cycles through fill patterns, text rendering, and full-screen bitmaps on the OLED. A quick way to see what the library can do.
  • Fur Elise – plays Beethoven's Fur Elise on a piezo buzzer while showing note names and a pitch bar on the display. Fits in 2.5 KB of flash.
  • Pong – a playable Pong game. Drag the slide potentiometer to move your paddle, press the button to start. The AI is beatable. 3.1 KB of flash.
  • Digital Pet – a Tamagotchi-style virtual pet. Press the button to feed it, drag the potentiometer to play with it. Keep both bars up or it falls asleep. 3 KB of flash.

More examples (including three retro games) are in the examples/ directory. See the simulation guide for running them locally with Wokwi.

Documentation

Full API reference, architecture guide, feature flags, and examples are available on the documentation site:

https://tejashwikalptaru.github.io/ssd1306xled/

Changelog

See CHANGELOG.md for a complete version history.

Contributing

Found a bug or want to add something? Fork the repo and open a pull request with your changes.

Credits

License

[MIT](LICENSE)
